Blade Transport Equipment
With our unique rental model, you have the freedom to equipment. No obligations to purchase additional services. Just direct availability without any restrictions.

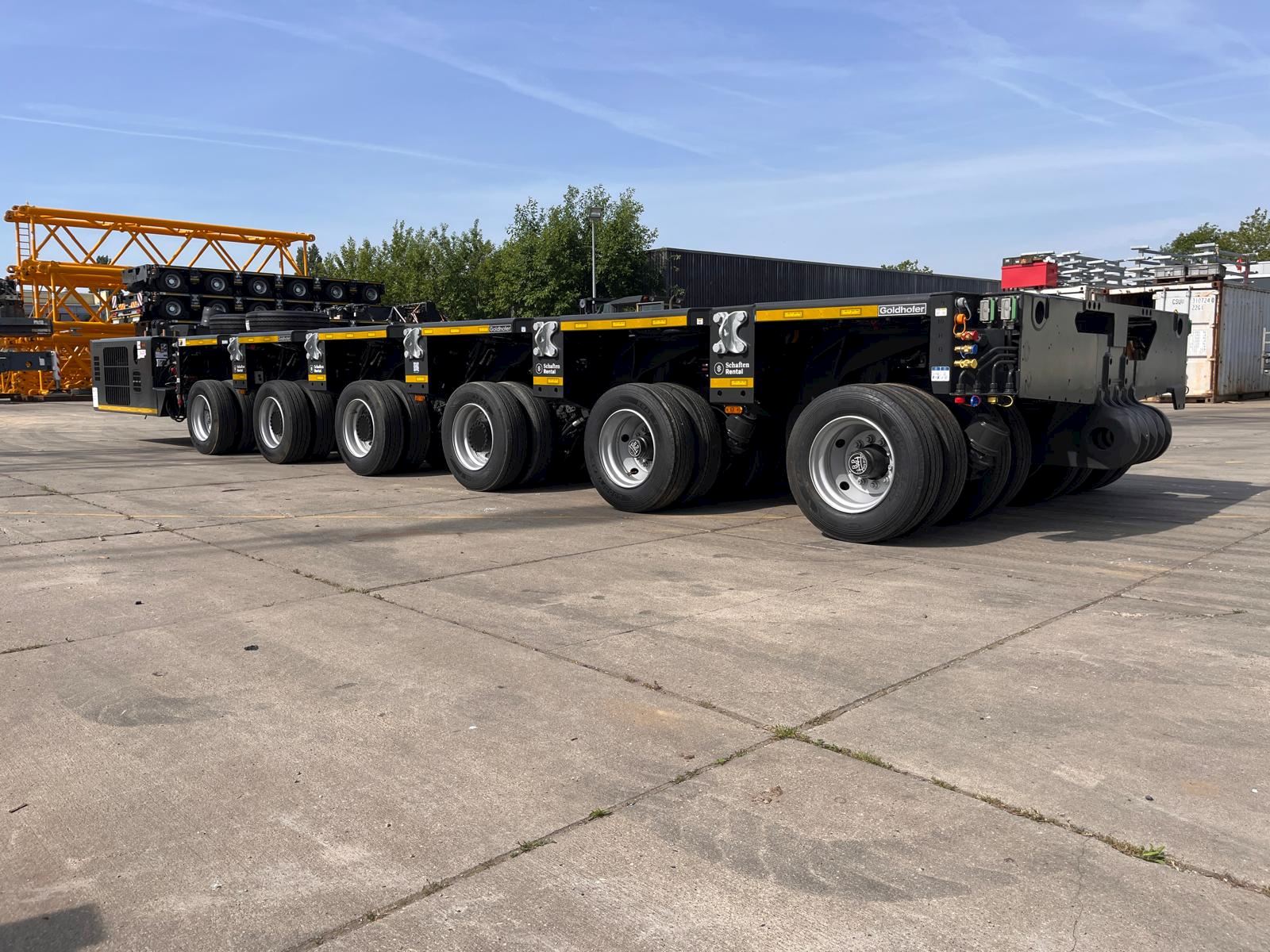

4-axle bogie THP/SL
- 45 t axles
- 8 tires per axle line 215/75 R 17,5
- Hydraulic axle stroke +/- 300 mm
- 3000 mm wide bogie
6-axle bogie THP/SL
- 45 t axles
- 8 tires per axle line 215/75 R 17,5
- Hydraulic axle stroke +/- 300 mm
- 3000 mm wide bogie
4-axle bogie THP/SL split
- 45 t axles
- 8 tires per axle line 215/75 R 17,5
- Hydraulic axle stroke +/- 300 mm
- Split for parallel combination P (1+1/2)
6-axle bogie THP/SL split
- 45 t axles
- 8 tires per axle line 215/75 R 17,5
- Hydraulic axle stroke +/- 300 mm
- Split for parallel combination P (1+1/2)

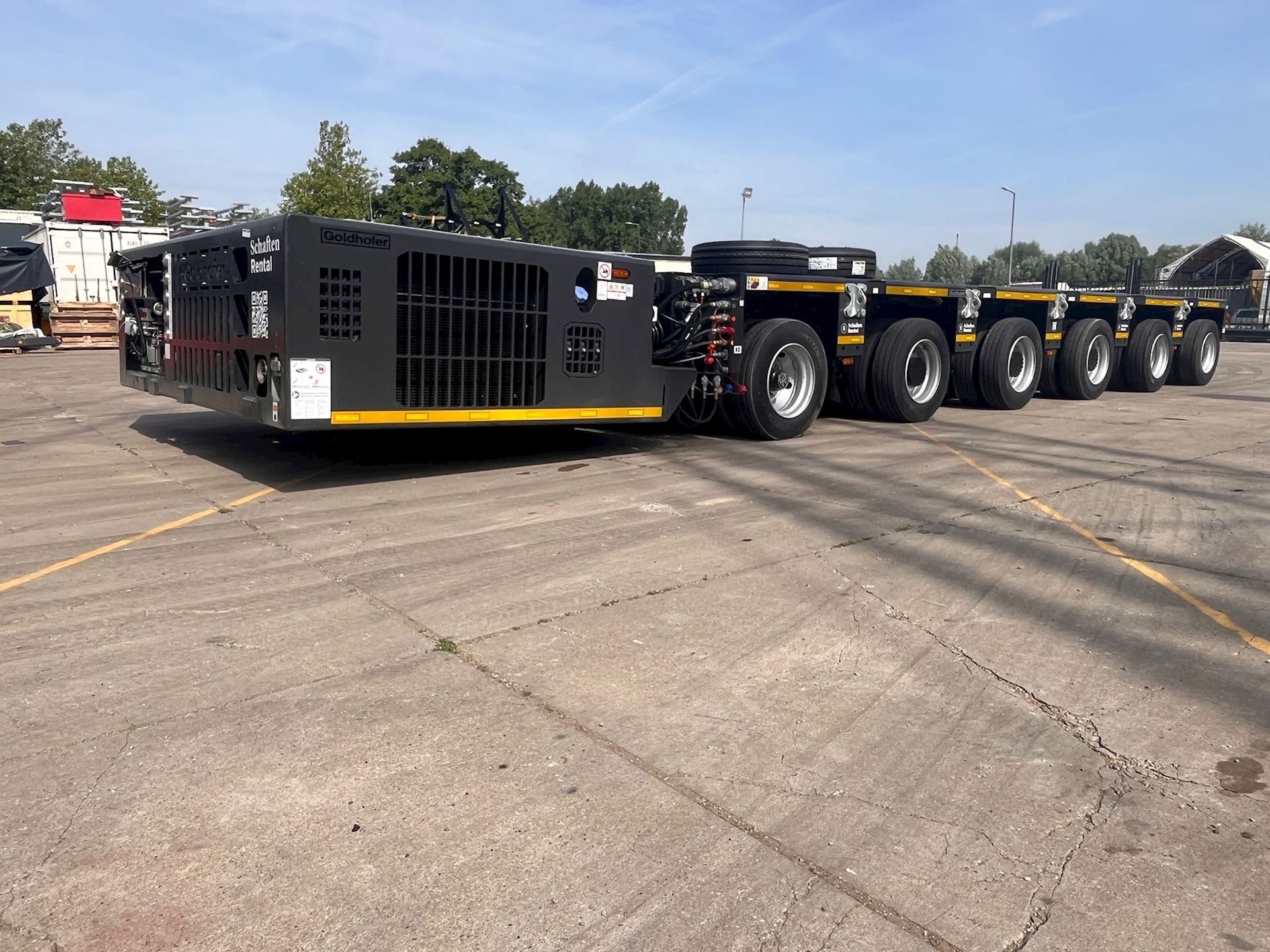

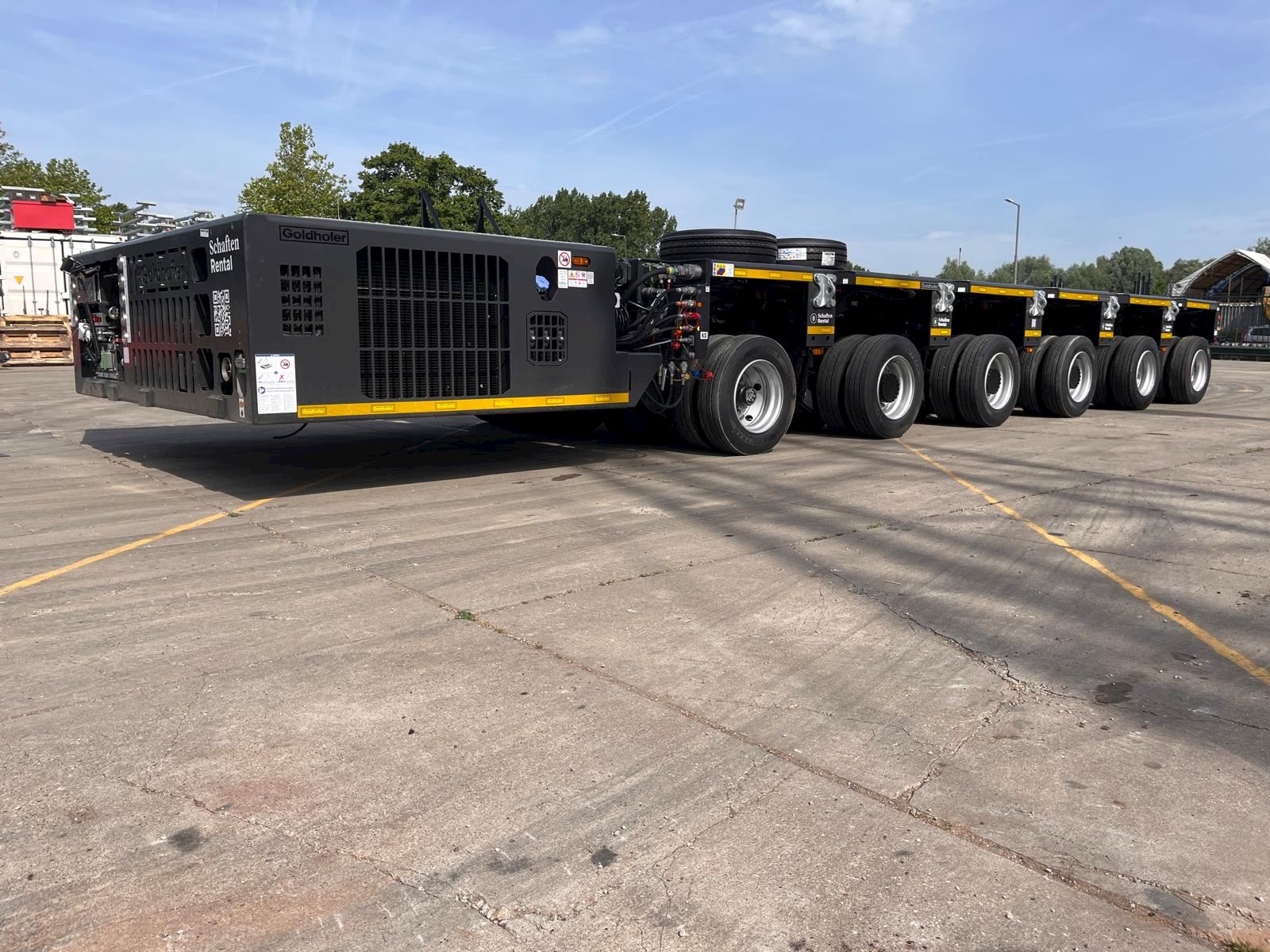

6-axle ADDrive THP/ADD
- 8 tires per axle line 215/75 R 17,5
- Axle configuration 12x06
- 3000 mm wide bogie
- Combinable to bogies and decks out of theTHP/SL product family and to other THP-modules with pivot bearing.
- Use of the vehicle without PowerPack as a pulled heavy duty module.
- »ADDRIVE«-mode up to technically max. 20km/h
- Automatic switch-off of drive when reaching the max. speed.
- Self-propelled mode up to 15 km/h
Blade lifter FTV850
- Including RBA 4
- combinable with self propelled modules (PST/ SL , PST/SL E ) or pulled ones (THP/ SL; THP/ADD)
- payload-moment max. 850 mt
- raising angle 60°
- pitch angle 360°

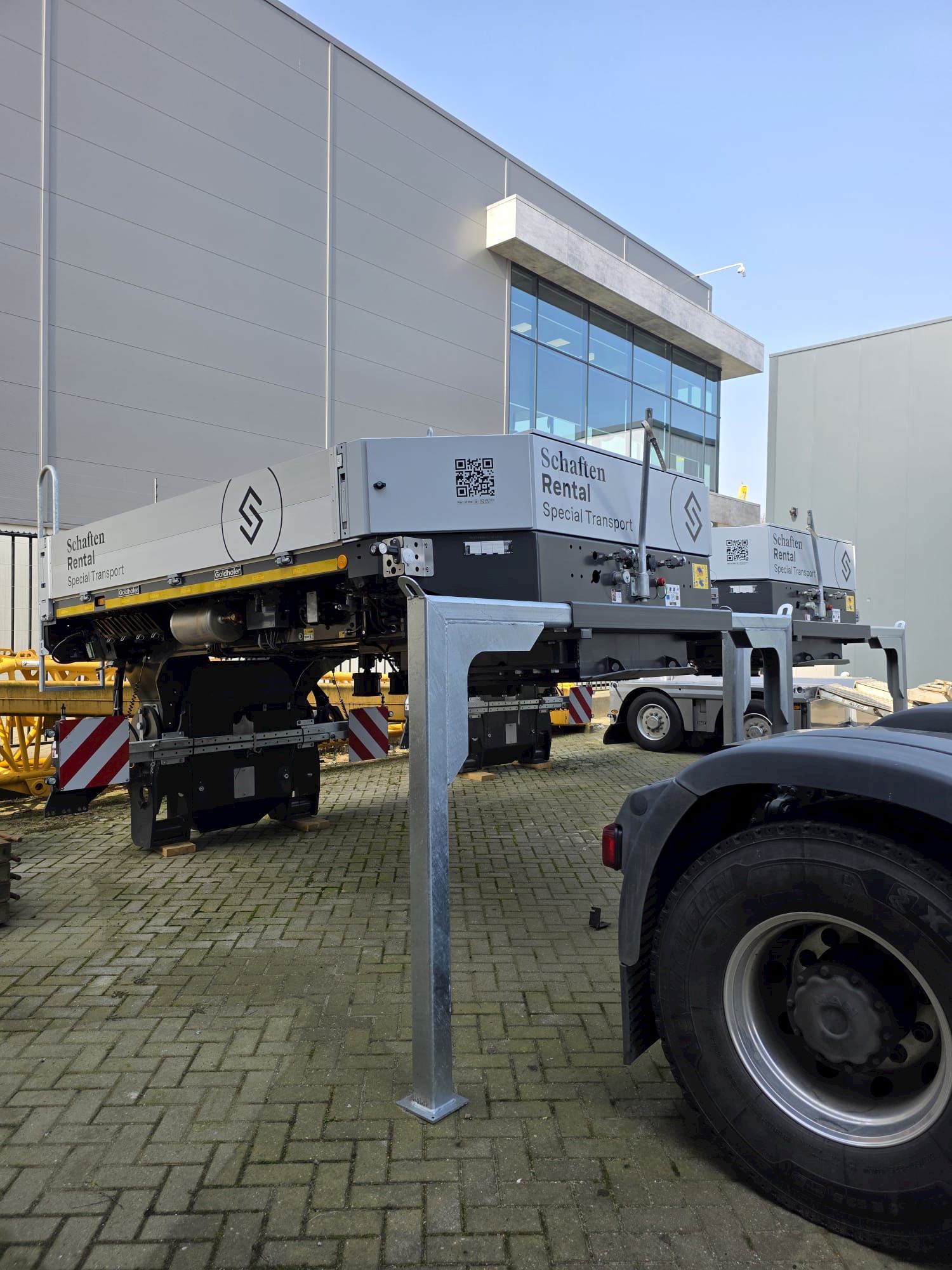

Gooseneck 35 t
- Technical 5 th wheel load 35 t
- 5th wheel plate supported on ball bearing race ring, including 3 1/2“ king pin and adjustable steering wedge
- Loading platform (approx. 3,700 mm x 2,440 mm) with anti slipping surface
- Deadweight approx . 5,800 kg
Turntable 200t
- 1 pair of turntables consisting of 2 units turntables
- Capacity of each turntable 200 t
- Deadweight 2 x approx 2 100 kg
- Suitable for modular trailers with a width of 3 000 mm and 2 750 mm
POWERPACK PP 280/3000 S tage V/T ier 4F 36 4
- Diesel engine–manufacturer/ type CumminsB6.7
- Emissionstandards Stage V / EPA-Tier 4 final
- Engineoutput 207 kW (280 PS)
- Dimensions 2.515 mm x 3.000mm x 858 mm
